Advanced EDA

Advanced EDA

Advanced Exploratory Data Analysis (Advanced EDA) involves deeper analysis and visualization techniques used to uncover hidden patterns, feature relationships, anomalies, and insights from complex datasets. It goes beyond basic charts and statistical summaries to perform more detailed data investigation.

Advanced EDA is widely used in real-world Data Science and Machine Learning projects to improve feature understanding and model performance.

Why Advanced EDA is Important

Advanced EDA helps:

• Detect complex patterns
• Identify hidden relationships
• Improve feature selection
• Detect multicollinearity
• Analyze feature importance
• Improve machine learning performance

Common Advanced EDA Techniques

1. Correlation Analysis
2. Pair Plot Analysis
3. Multivariate Analysis
4. Outlier Detection
5. Distribution Analysis
6. Feature Relationship Analysis
7. Skewness and Kurtosis

 1. Correlation Analysis

Correlation measures the relationship between numerical variables.

Correlation Range

−1≤r≤1

Where:

• $r=1$ → strong positive correlation
• $r=-1$ → strong negative correlation
• $r=0$ → no relationship

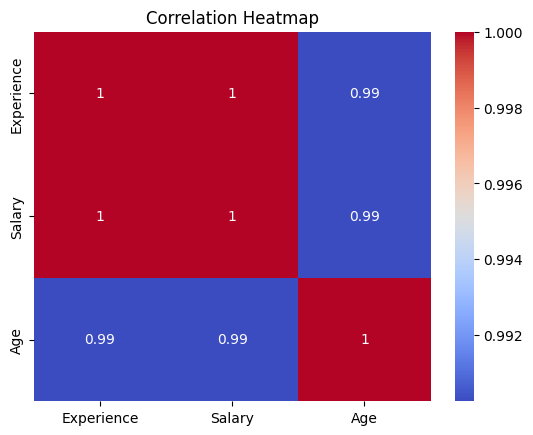

Python Example — Correlation Heatmap

import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

data = {
    "Experience": [1, 2, 3, 4, 5],
    "Salary": [30000, 40000, 50000, 60000, 70000],
    "Age": [22, 25, 28, 30, 35]
}

df = pd.DataFrame(data)

sns.heatmap(df.corr(), annot=True, cmap="coolwarm")

plt.title("Correlation Heatmap")

plt.show()

Output:

2. Pair Plot Analysis

Pair plots visualize relationships among multiple numerical variables simultaneously.

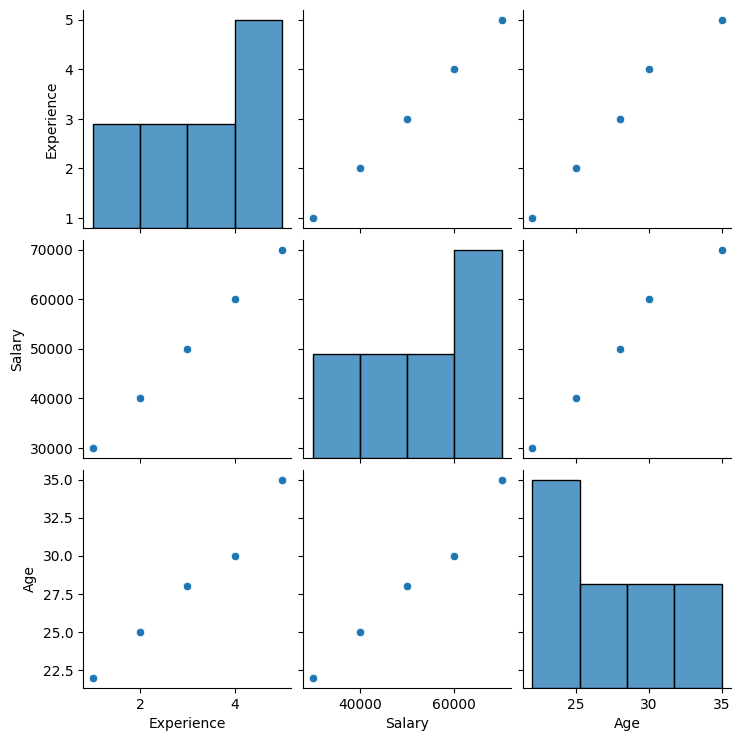

Python Example — Pair plot

sns.pairplot(df)

plt.show()

Output:

Pair Plot Helps Analyze

• Correlations

• Trends

• Clusters

• Feature distributions

3. Multivariate Analysis

Multivariate analysis studies relationships among multiple variables together.

Example:

Analyzing:

• Salary

• Experience

• Age

• Department

simultaneously.

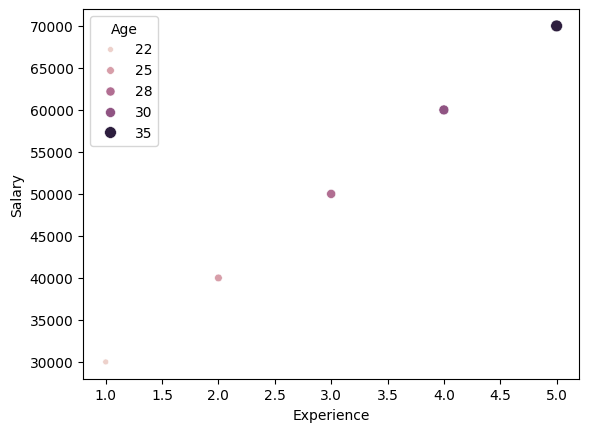

Python Example — Scatter plot

sns.scatterplot(
    x="Experience",
    y="Salary",
    hue="Age",
    size="Age",
    data=df
)

plt.show()

Output:

4. Outlier Detection

Outliers are abnormal values that differ significantly from other observations.

Python Example — Box Plot

sns.boxplot(x=df["Salary"])

plt.title("Salary Outliers")

plt.show()

Output:

IQR Method

Outliers can also be detected using the Interquartile Range (IQR).

IQR Formula

IQR=Q3−Q1

---

Outlier Condition

x < Q1 − 1.5(IQR) or x > Q3 + 1.5(IQR)

Python Example — IQR

Q1 = df["Salary"].quantile(0.25)
Q3 = df["Salary"].quantile(0.75)

IQR = Q3 - Q1

outliers = df[
    (df["Salary"] < (Q1 - 1.5 * IQR)) |
    (df["Salary"] > (Q3 + 1.5 * IQR))
]

print(outliers)

Output:

Empty DataFrame
Columns: [Experience, Salary, Age]
Index: []

5. Distribution Analysis

Distribution analysis helps understand:

• Normal distribution
• Skewness
• Spread of data

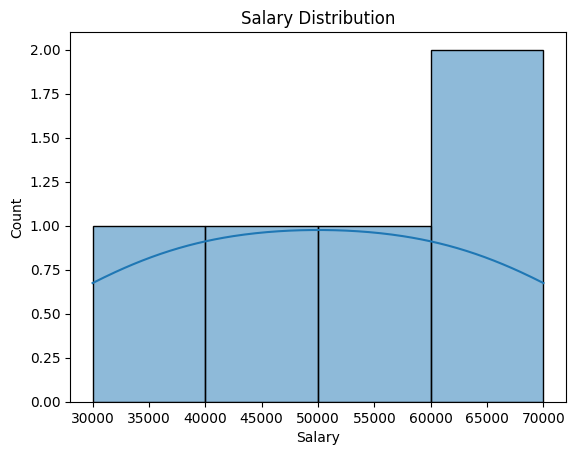

Histogram with KDE

sns.histplot(df["Salary"], kde=True)

plt.title("Salary Distribution")

plt.show()

Output:

6. Skewness Analysis

Skewness measures asymmetry in data distribution.

Types of Skewness

Type	Meaning
Positive Skew	Tail on right side
Negative Skew	Tail on left side
Zero Skew	Symmetric distribution

Python Example

print(df["Salary"].skew())

Output:

0.0

7. Kurtosis Analysis

Kurtosis measures the sharpness of data distribution peaks.

Python Example

print(df["Salary"].kurt())

Output:

-1.2000000000000002

8. Missing Value Visualization

Advanced EDA also includes visual analysis of missing data.

Python Example

import pandas as pd
import seaborn as sns
import numpy as np
import matplotlib.pyplot as plt

data = {
    "Experience": [1, 2, 3, 4, 5,np.nan],
    "Salary": [30000, 40000, 50000, 60000, 70000,1000],
    "Age": [22, 25, 28, 30, 35,23]
}

df = pd.DataFrame(data)

sns.heatmap(df.isnull(), cbar=False)

plt.title("Missing Values Heatmap")

plt.show()

Output:

Real-World Example

Employee Dataset Analysis

Suppose a company dataset contains:

• Age
• Salary
• Experience
• Department
• Performance Score

Advanced EDA helps identify:

• Salary trends
• High-performing departments
• Strongly correlated features
• Outliers in salaries
• Hidden patterns in employee performance

Benefits of Advanced EDA

• Better feature understanding

• Improved feature selection

• Detection of hidden patterns

• Better preprocessing decisions

• Improved model performance

Important Points

1. Advanced EDA helps uncover hidden patterns in data.

2. Pair plots visualize relationships among multiple variables.

3. IQR is commonly used for outlier detection.

4. Skewness measures asymmetry in data distribution.
5. Kurtosis measures peak sharpness in distributions.

Summary

Advanced EDA involves deeper statistical analysis and advanced visualization techniques to better understand complex datasets. Techniques such as correlation analysis, pair plots, outlier detection, skewness analysis, kurtosis analysis, and multivariate analysis help uncover hidden insights and improve machine learning model development.
