What is a Chat Application?

A Chat Application is a full-stack MERN web application that allows registered users to communicate with each other through real-time messaging.

Users can securely create an account, login, view other users, send chat requests, accept or decline requests, block users, and exchange messages in real time.

The application uses JWT Authentication to protect user accounts and private APIs.

Users can see the online/offline status of other users. Once a chat request is accepted, users can start chatting with each other.

The application uses Socket.IO for real-time communication, allowing messages to be delivered instantly without refreshing the page.

A Chat Request System is included so that users cannot directly start a conversation with everyone. A user must first send a request, and the receiver can Accept, Decline, or Block the request.

Features of Chat Application

User Features

Feature	Description
User Registration	Create a new chat application account
User Login	Login securely using email and password
JWT Authentication	Protects user-only pages and APIs
User Dashboard	Display users and chat interface
View Users	View registered users
Search Users	Search users by name or email
Online Status	Show whether users are online or offline
Send Chat Request	Send a request to another user
Request Sent Status	Show when a request has already been sent
Chat Request Notification	Show received chat requests
Accept Request	Accept an incoming chat request
Decline Request	Decline an incoming chat request
Block User	Block a user from chatting
Chat Access	Start chatting after request acceptance
Send Message	Send messages to another user
Receive Message	Receive messages in real time
Message History	View previous messages
Message Time	Display the time when messages were sent
Real-Time Messaging	Messages appear instantly using Socket.IO
Online/Offline Indicator	Display current user availability
Last Seen	Store the last time a user was online
Logout	Securely logout from the application

Chat Request Features

The chat request system works like this:

User A
   |
   | Send Request
   ↓
User B
   |
   ├── Accept
   │     ↓
   │   Chat Enabled
   │
   ├── Decline
   │     ↓
   │   Chat Not Allowed
   │
   └── Block
         ↓
      User Blocked

Technologies Used

Frontend

Technology	Purpose
React.js	User interface
Vite	Fast React development setup
JSX	Component structure
CSS	Styling and responsive layout
Axios	API communication
React Router DOM	Page navigation
Context API	Authentication/user state management
Socket.IO Client	Real-time messaging
JavaScript	Frontend functionality

Backend

Technology	Purpose
Node.js	JavaScript runtime
Express.js	Backend API framework
MongoDB	Stores users, messages, and chat requests
Mongoose	MongoDB connection and schemas
JWT	Secure authentication
bcryptjs	Password hashing
CORS	Frontend-backend communication
dotenv	Environment variable management
Socket.IO	Real-time communication

Chat Application File Structure

Backend Files

backend/
├── server.js
├── .env
├── package.json
│
├── config/
│   └── db.js
│
├── models/
│   ├── User.js
│   ├── Message.js
│   └── ChatRequest.js
│
├── controllers/
│   ├── authController.js
│   ├── userController.js
│   ├── messageController.js
│   └── chatRequestController.js
│
├── routes/
│   ├── authRoutes.js
│   ├── userRoutes.js
│   ├── messageRoutes.js
│   └── chatRequestRoutes.js
│
├── middleware/
│   └── authMiddleware.js
│
└── socket/
    └── socket.js

Frontend Files

frontend/
├── src/
│   ├── App.jsx
│   ├── main.jsx
│   │
│   ├── api/
│   │   └── axios.js
│   │
│   ├── components/
│   │   ├── Auth/
│   │   │   ├── Login.jsx
│   │   │   └── Register.jsx
│   │   │
│   │   ├── Chat/
│   │   │   ├── ChatWindow.jsx
│   │   │   ├── MessageBubble.jsx
│   │   │   └── MessageInput.jsx
│   │   │
│   │   ├── ChatRequest/
│   │   │   ├── ChatRequestCard.jsx
│   │   │   ├── ChatRequestPanel.jsx
│   │   │   └── RequestActions.jsx
│   │   │
│   │   ├── Common/
│   │   │   └── ...
│   │   │
│   │   └── Sidebar.jsx
│   │
│   ├── context/
│   │   └── AuthContext.jsx
│   │
│   ├── pages/
│   │   ├── Login.jsx
│   │   ├── Register.jsx
│   │   └── UserDashboard.jsx
│   │
│   └── styles/
│       ├── global.css
│       ├── login.css
│       ├── register.css
│       ├── dashboard.css
│       └── chat.css
│
├── public/
├── package.json
└── vite.config.js

Simple Chat Application Flow

User opens Chat Application
        ↓
User opens Register page
        ↓
User creates account
        ↓
Password is hashed using bcrypt
        ↓
User data is saved in MongoDB
        ↓
User logs in
        ↓
JWT token is created
        ↓
Token is stored in browser
        ↓
User opens User Dashboard
        ↓
Registered users are displayed
        ↓
User searches for another user
        ↓
User clicks "Request"
        ↓
Chat Request is created
        ↓
Receiver receives Chat Request
        ↓
Receiver opens Requests
        ↓
Receiver chooses
        ↓
 ┌──────────┬──────────┬──────────┐
 ↓          ↓          ↓
Accept    Decline    Block
 ↓          ↓          ↓
Chat      Request     User
Enabled   Declined    Blocked
 ↓
User opens Chat
 ↓
User sends message
 ↓
Message saved in MongoDB
 ↓
Socket.IO sends message
 ↓
Receiver gets message instantly

Backend Installation Commands

mkdir backend

cd backend

npm init -y

npm install express mongoose cors dotenv bcryptjs jsonwebtoken socket.io

npm install nodemon --save-dev

mkdir models routes controllers middleware config socket

Frontend Installation Commands

Create the React application:

mkdir frontend

cd frontend

npm create vite@latest .

npm install

Install required packages:

npm install axios react-router-dom socket.io-client

Security Features

The Chat Application includes:

JWT Authentication
Password Hashing using bcryptjs
Protected API Routes
Authentication Middleware
CORS Configuration
User-based Access Control
Protected Chat Requests
Protected Messages
MongoDB Data Storage

Complete Project Architecture

                         CHAT APPLICATION
                                |
                 ┌──────────────┴──────────────┐
                 ↓                             ↓
             FRONTEND                       BACKEND
                 |                             |
              React.js                    Node.js
                 |                             |
              Vite                       Express.js
                 |                             |
             Axios API                    REST API
                 |                             |
         React Router DOM              Controllers
                 |                             |
          Context API                     Routes
                 |                             |
         Socket.IO Client              Middleware
                 |                             |
                 |                       Socket.IO
                 |                             |
                 └──────────────┬──────────────┘
                                ↓
                              MongoDB
                                |
                     ┌──────────┼──────────┐
                     ↓          ↓          ↓
                   Users    ChatRequests  Messages

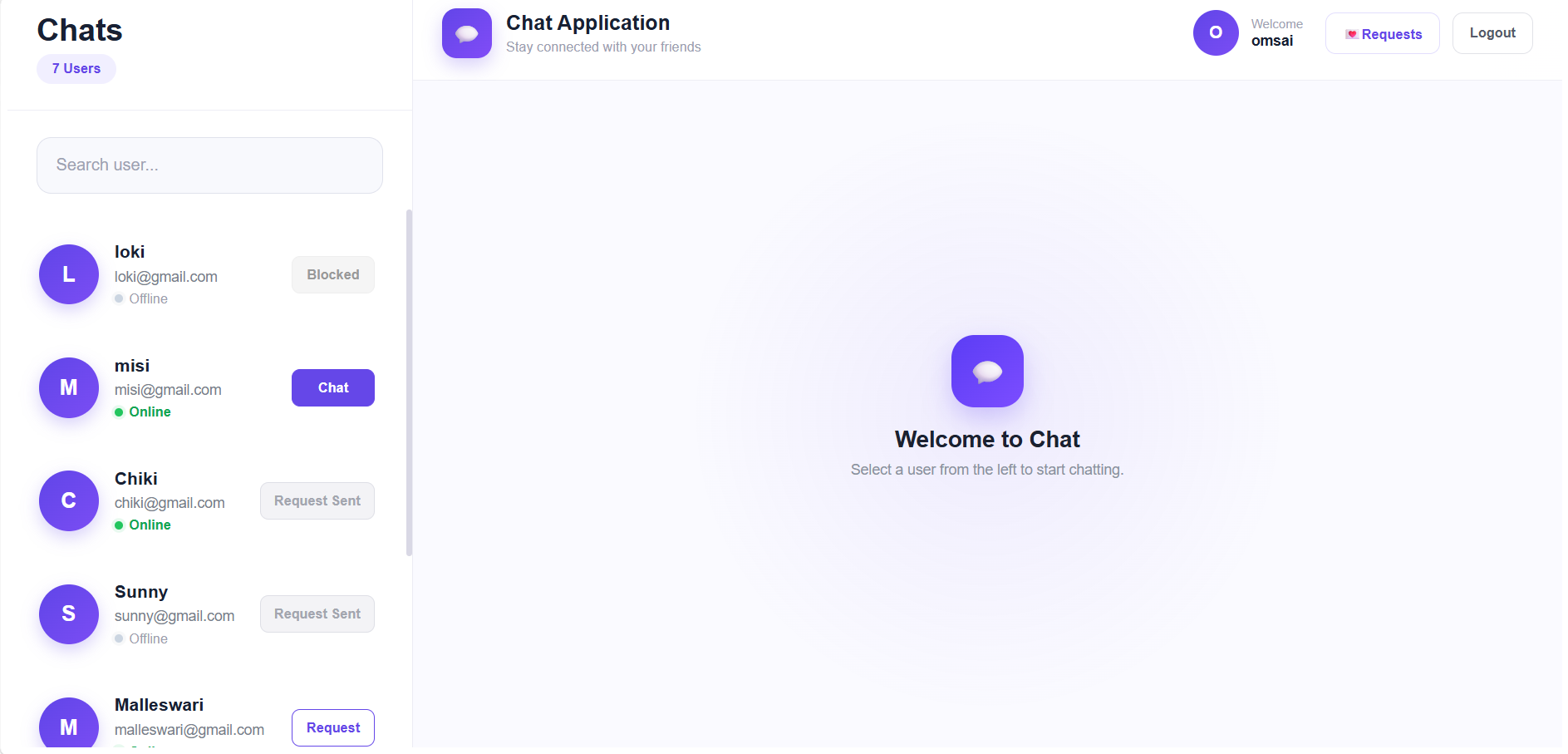

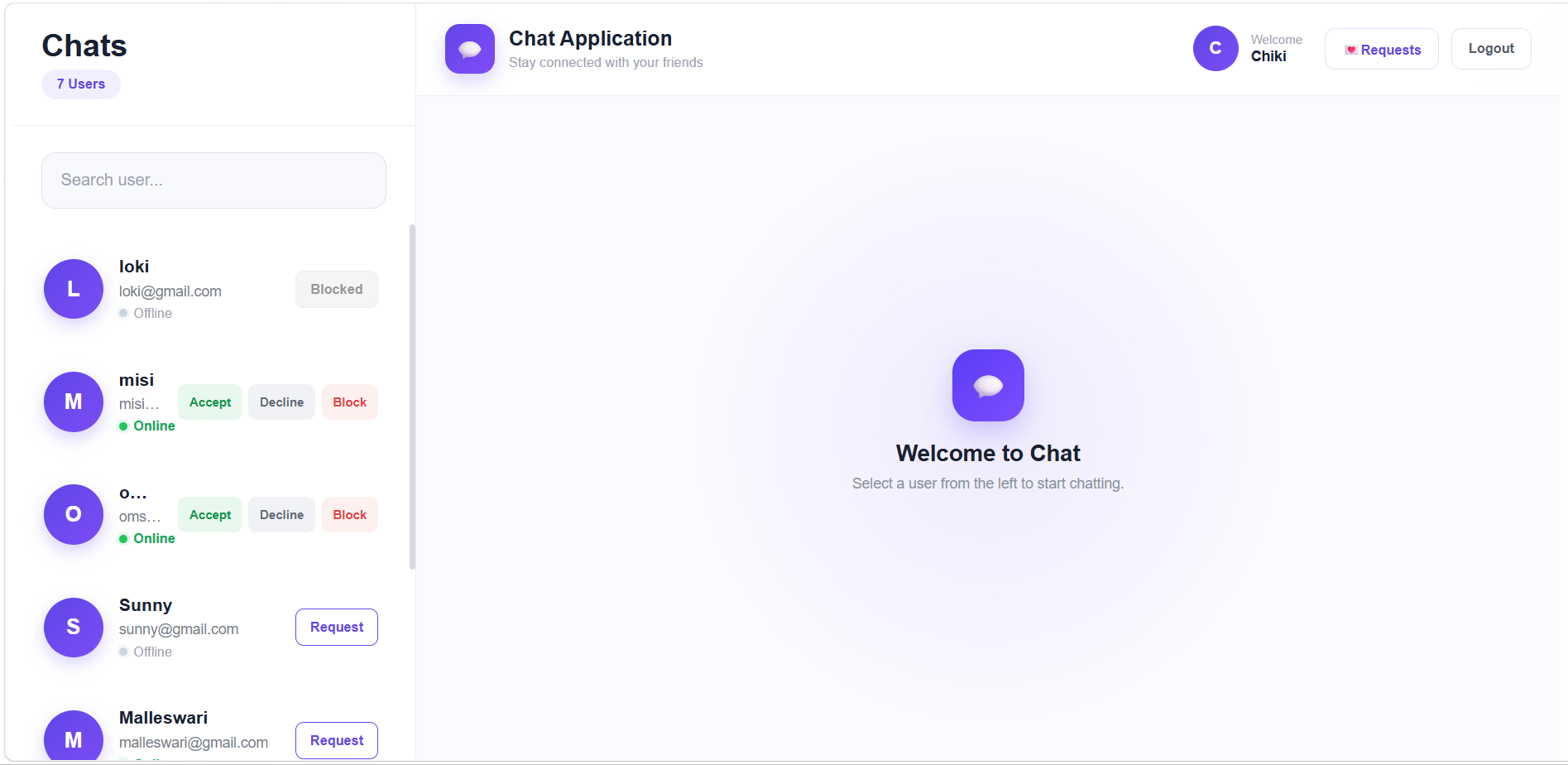

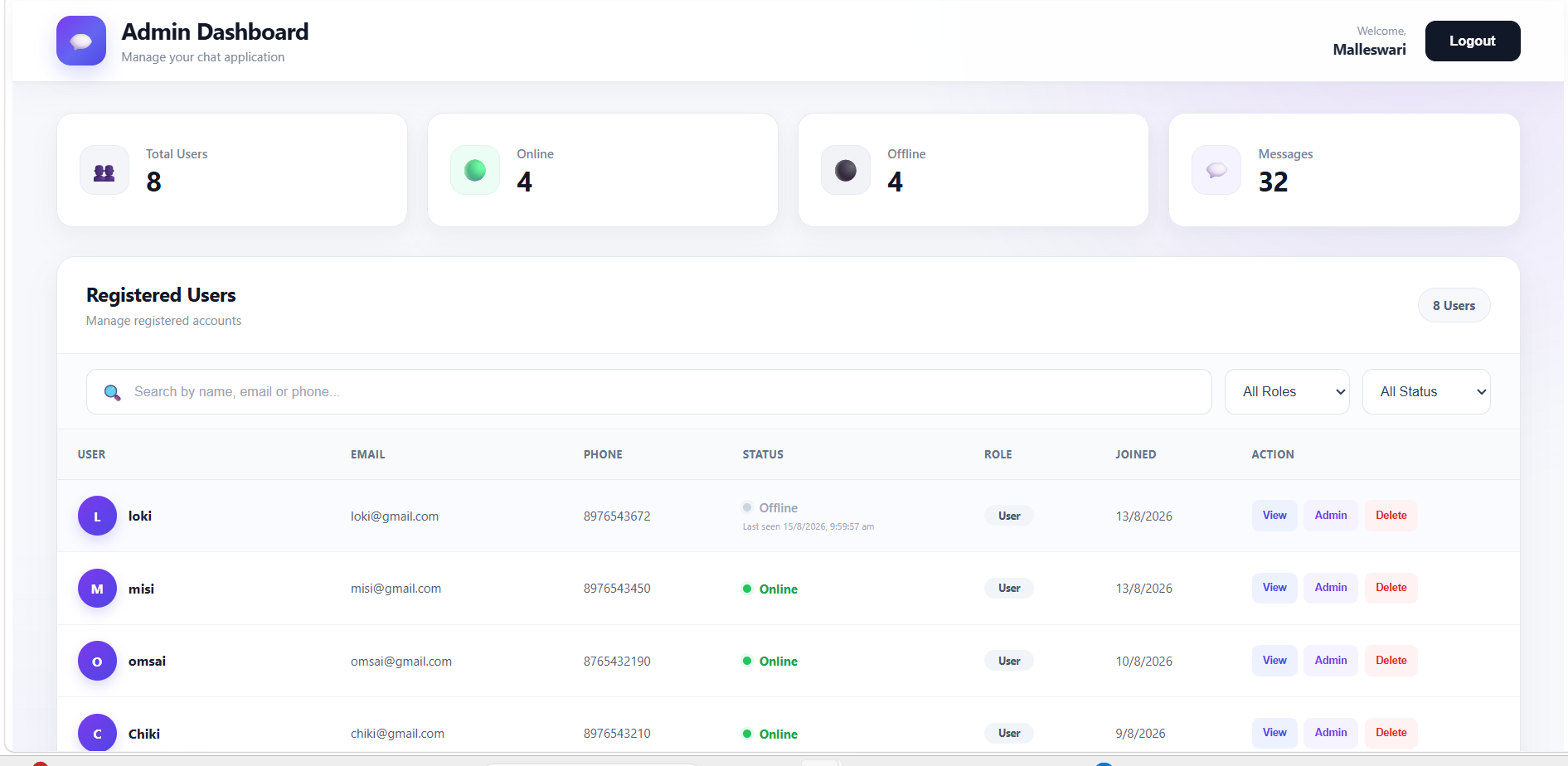

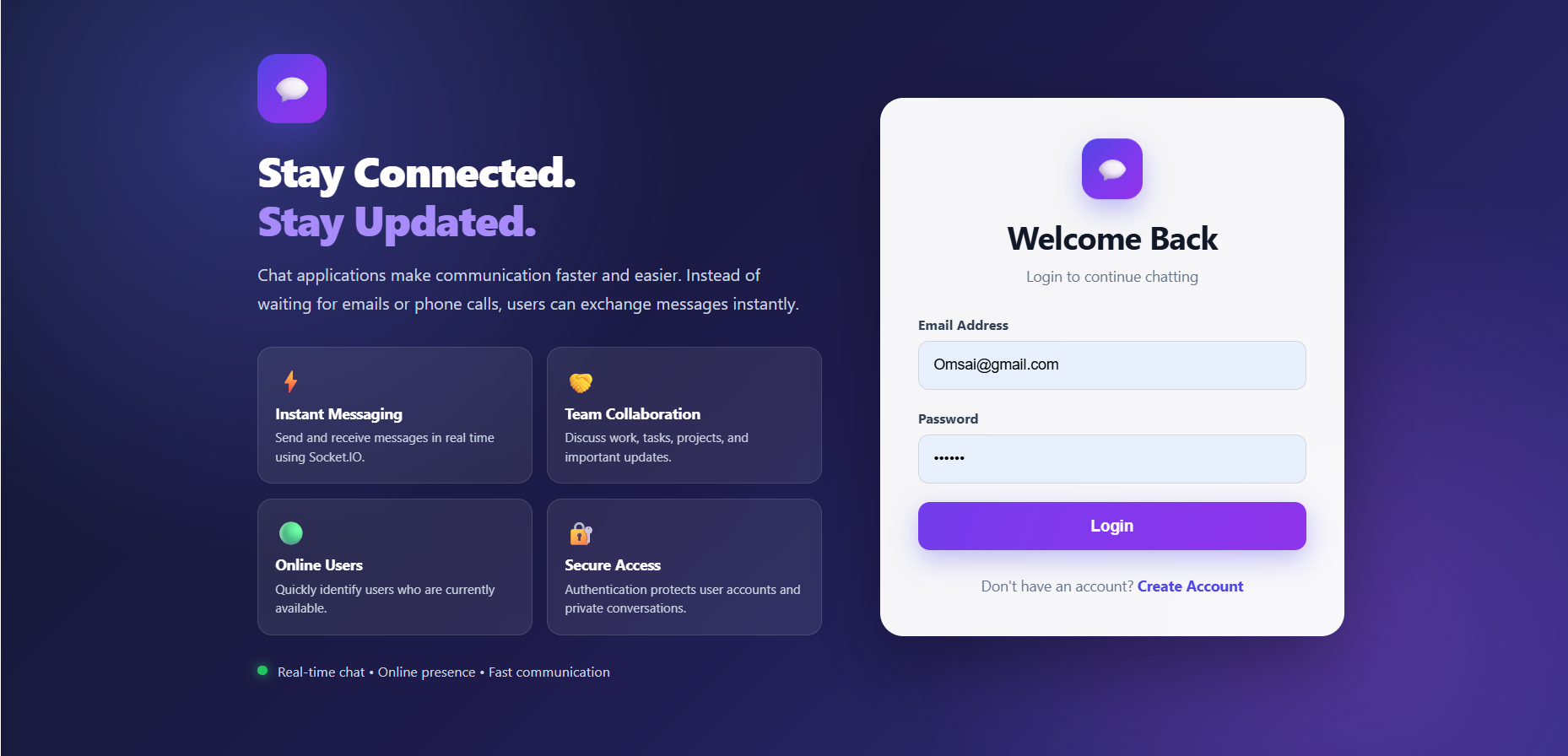

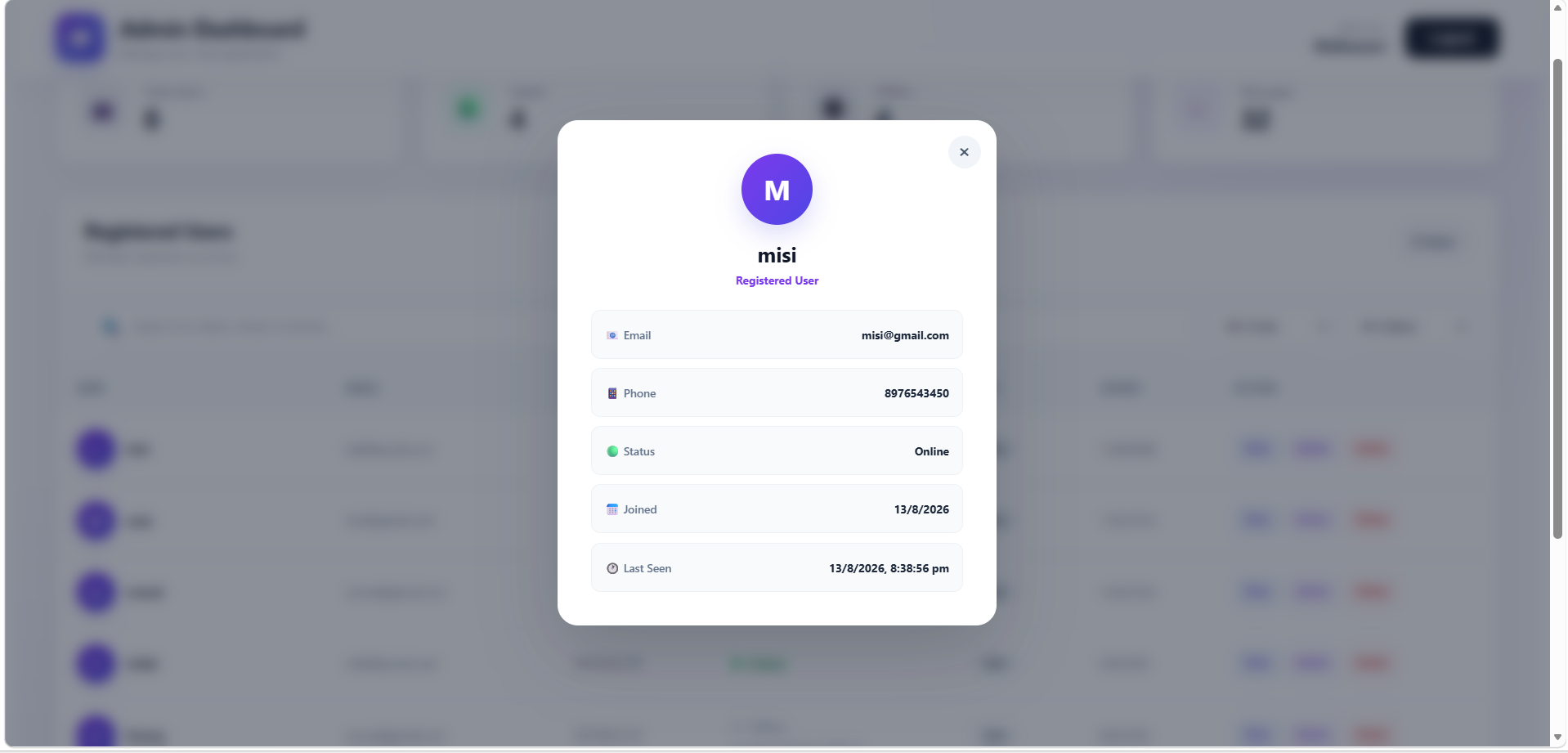

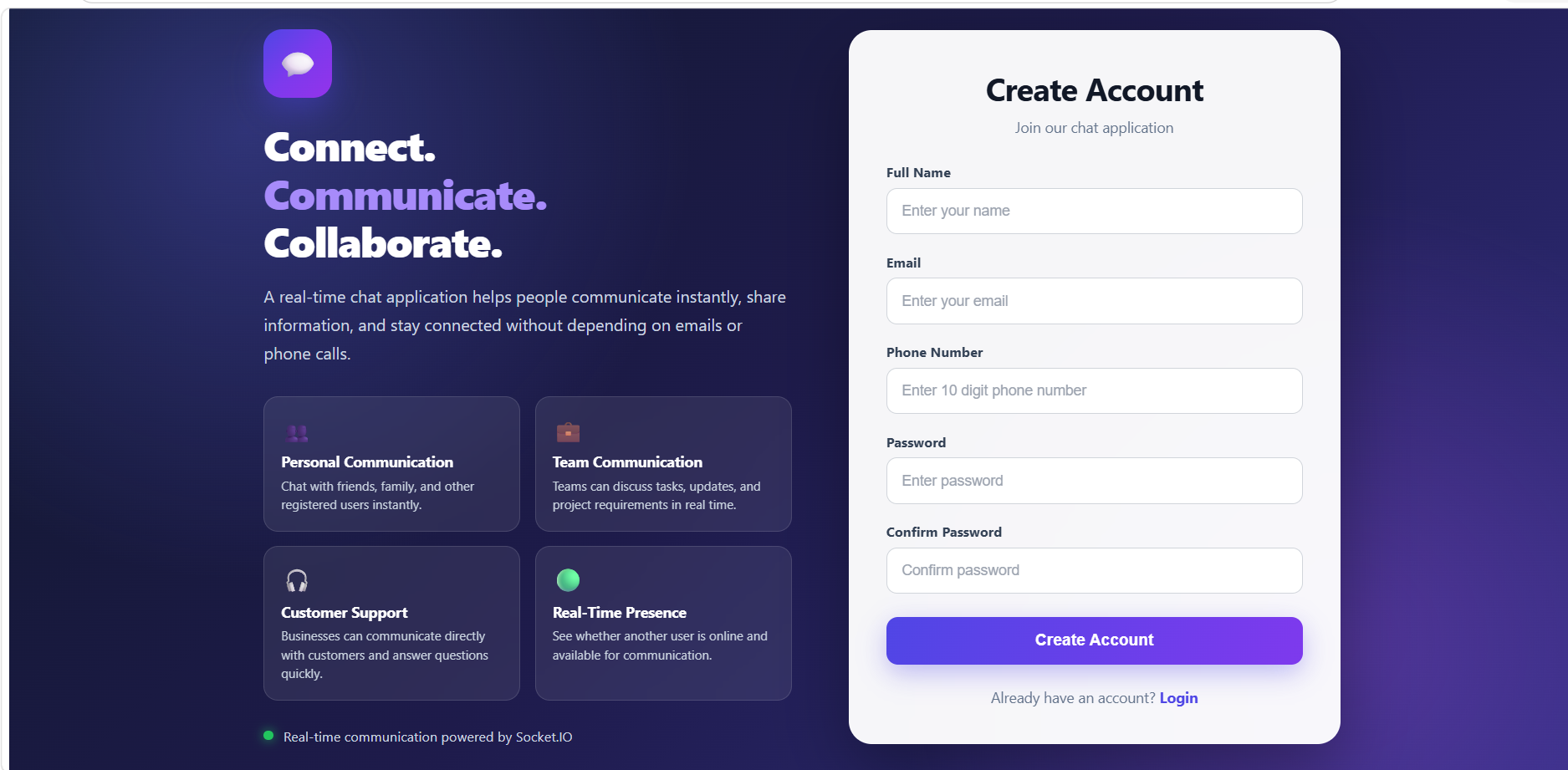

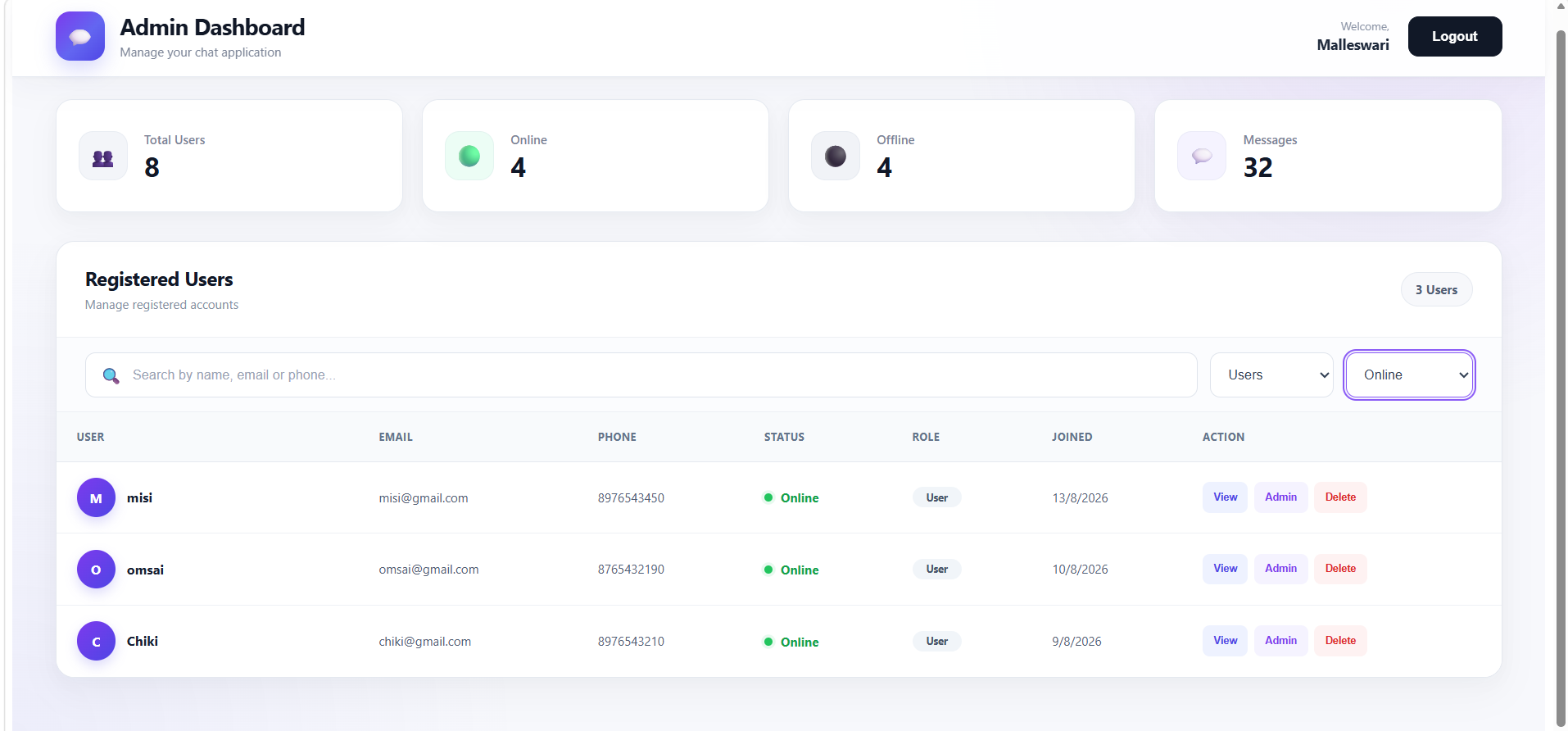

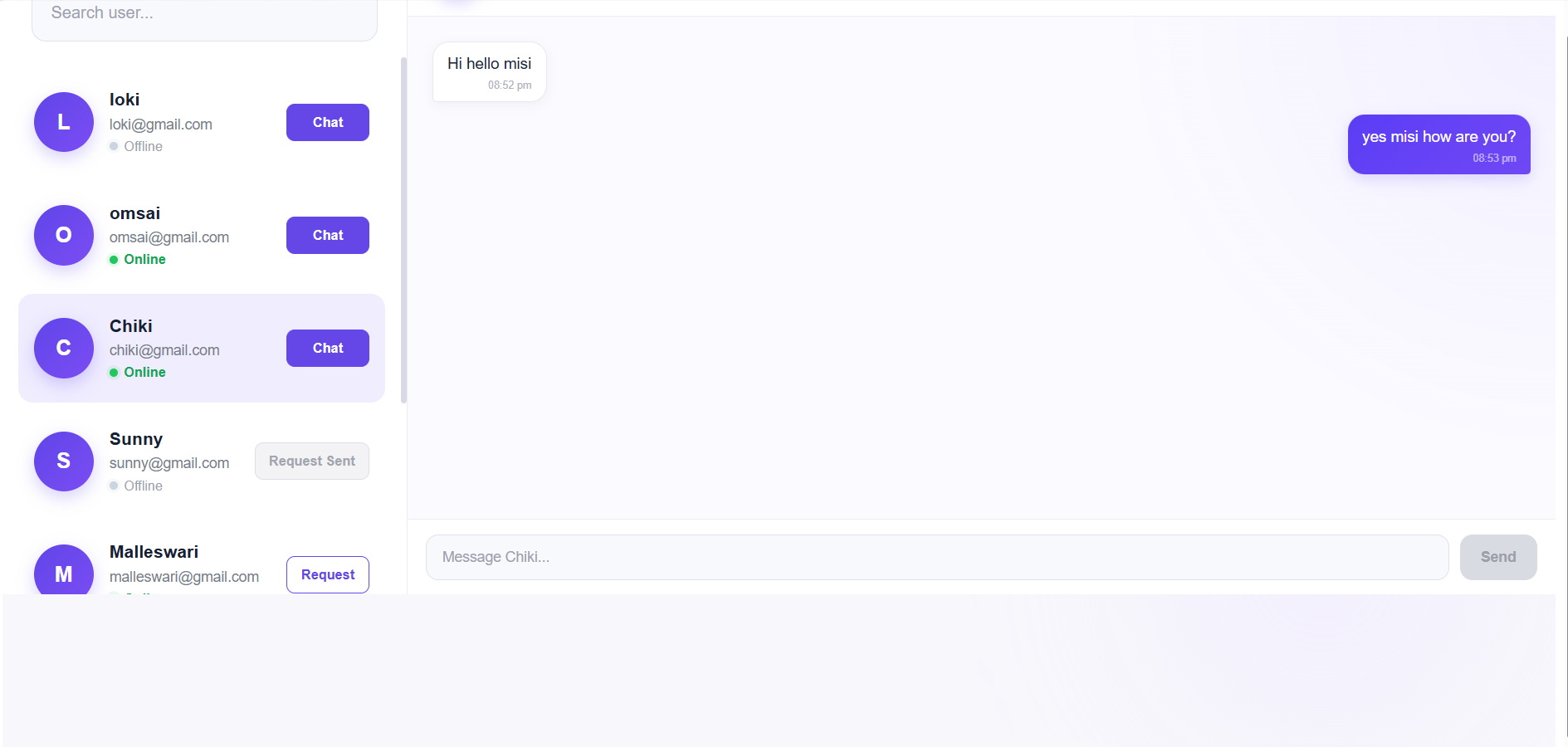

Output Screens of Chat Application

Summary

The Chat Application is a full-stack MERN real-time messaging application that allows users to securely communicate with each other.

Users can register, login, search for users, view online/offline status, send chat requests, accept or decline requests, block users, and exchange messages.

The application uses JWT Authentication for secure login and protected APIs, MongoDB for storing users, chat requests, and messages, and Socket.IO for real-time communication.
